Cottonwood Mall | Chilliwack, BC | 2022
Live upgrade of a shopping mall in Chilliwack, BC. All wired thermostats were replaced with wireless controllers and custom BAS graphics was provided by nSite BMS. All photographs, graphics and assets created by AC.

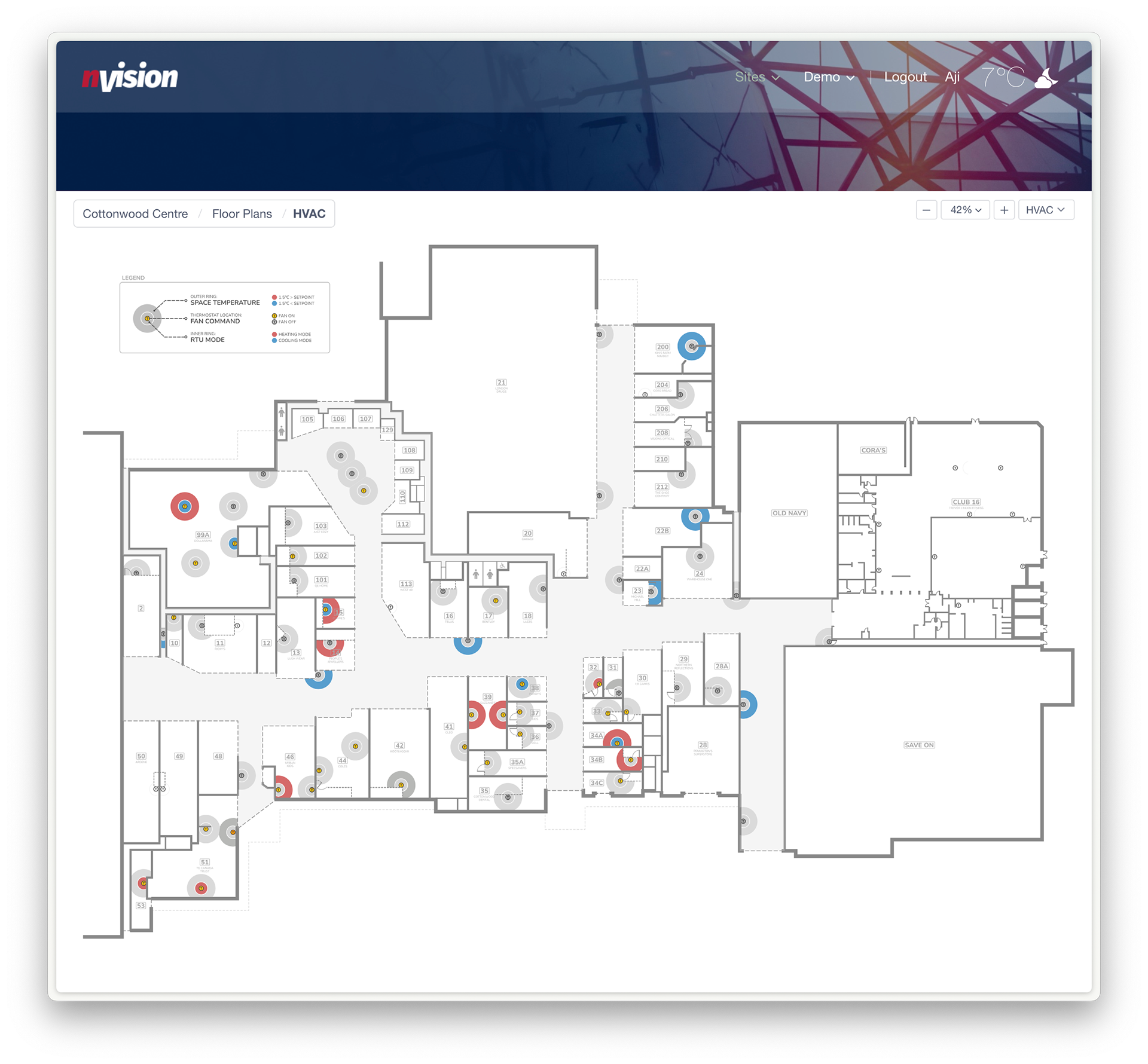

Floor plan showing thermostats serving each space. Outer ring shows current space temperature and inner ring shows RTU operation.
Lighting map shows each individual lighting fixture and its status. User can tap/click on any element to show available actions.
Survey notes for thermostat locations

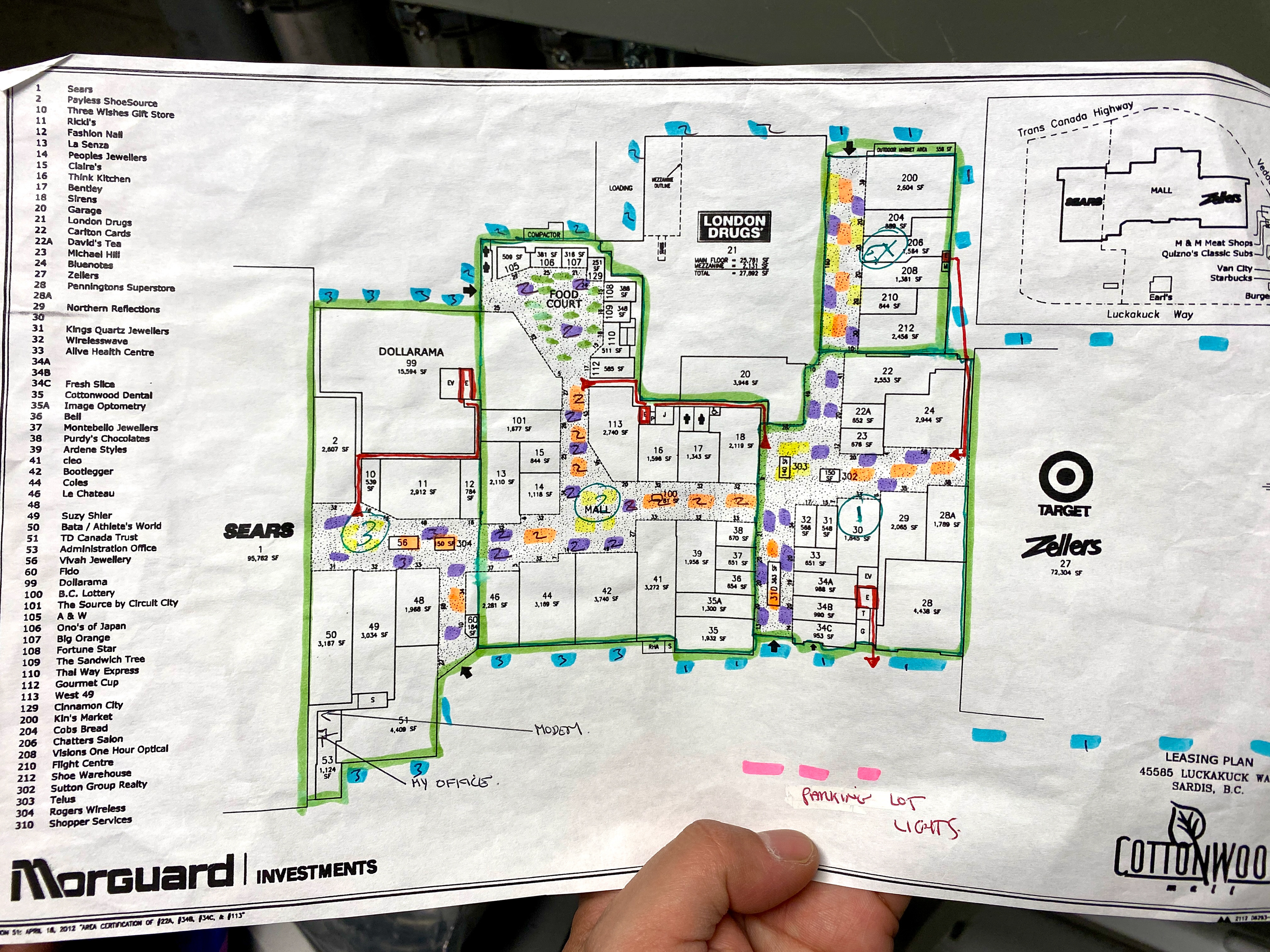

Survey sketches while tracing each light circuit to its electrical relay

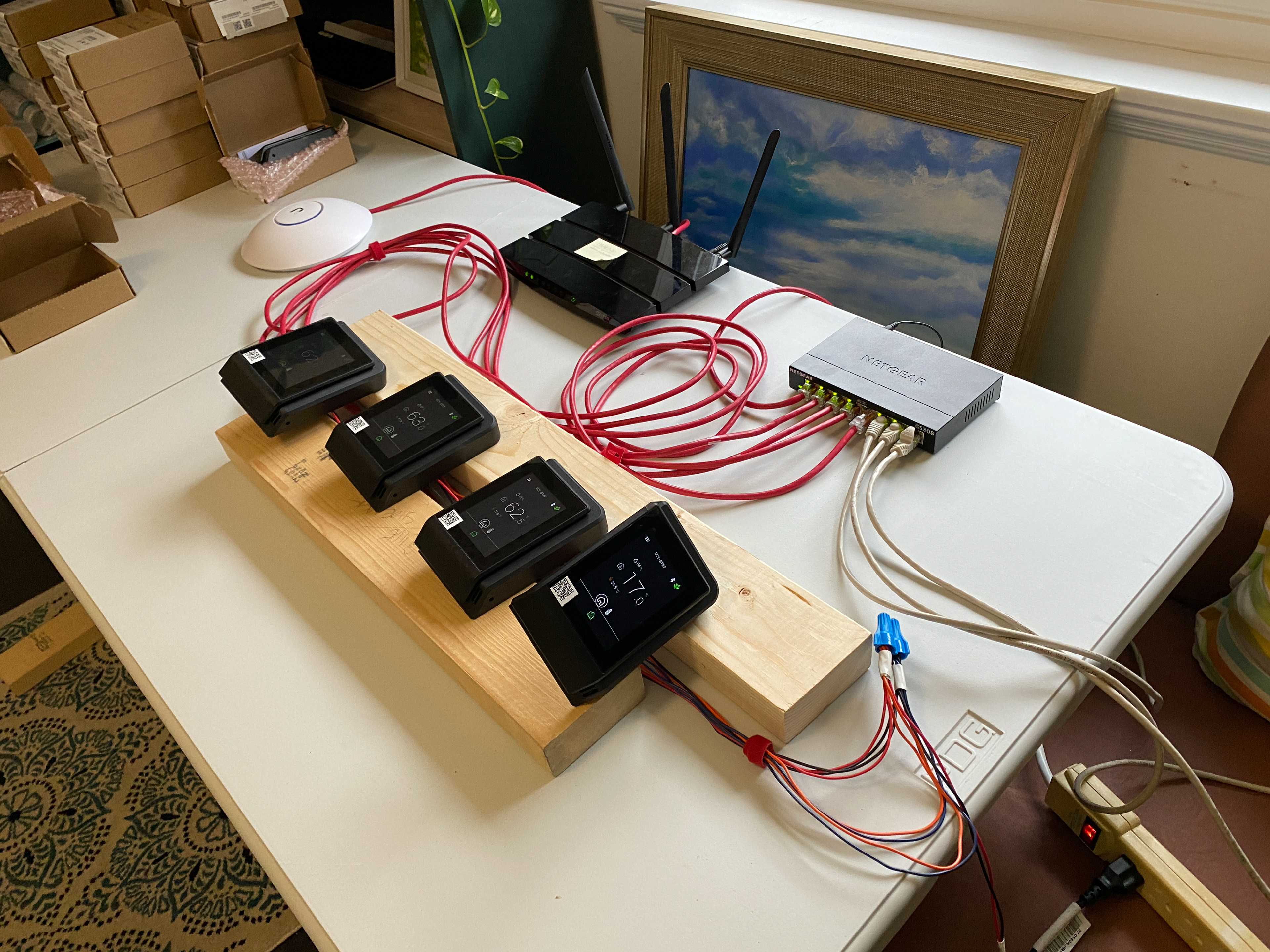

Controller provisioning & firmware updates before shipping to site.
